    Cooler Rotary Drum Dryer Machine , 50 - 1000m2 Industrial Rotary Dryer

    Ask Lasest Price
    Brand Name : WANGU
    Model Number : GHG
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets a year
    Delivery Time : 30-100days upon the order quantity
    • Product Details
    • Company Profile

    Cooler Rotary Drum Dryer Machine , 50 - 1000m2 Industrial Rotary Dryer

    Factory Directly Sale Rotary Drum Cooler Machine with Newest Technology

    1. Introduction:

    Chemical industry, light industry, food, grain,feed and other industries, such as the drying of distiller’sgrains, pig hair, bone meal,inorganic minerals, corn fiber, germ, protein powder, bran, corn grains, soybean dregs, fish and shrimp scraps, rapeseed (not for seed use)and other materials.
    2. Scope of application
    Spent grain,pig hair,bone meal,inorganic minerals,corn fiber,germ,protein powder,bran,corn grians,soybean dregs,fish and shrimp scraps,rapeseed and other materials
    3. Features of material
    Raw materialInitial moistureEnd moistureEvaportaion power kgH2O/m2h
    Straw55%3~5%2.5~3
    Corn fiber60%10~12%4.8
    Fermented grass powder45%12~13%4.7
    Wooden piece and chip20%2~3%4.3
    Potato fiber65%10~12%4.8
    Distiller's grain for beer or spirit65%10~12%4.9
    Feed carrier16%6~8%4.2
    Rape seed60%5~7%4.5
    Pig blood fermented powder35%10%4.4
    Bone powder40%10%4.6
    4. Advantages
    It’s a low-carbon, environment-friendly and energy-saving product and its energy consumption is about 65% of that ofthe traditional tube bundle dryer.
    ■ During the rotating process, the rotary tube bundle stirs materials up and down inside the roller.There are no dead angle when turning and mixing material.
    ■ Since the heat exchange tube is not bearing weight of raw material when the roller is rotating, the probability of leakage of the heat exchange tube is lower.the service life of the equipmentis greatly improved; what’s more, it also allows starting with raw materials,thus is easy to use and maintain.
    ■ It increases the indirect heat exchange area.The whole roller shell is involved in the heat exchange when the roller is in operation,which is more conductive to materials raw material drying and enhances the drying effect.
    5. CORN DRYER CHARACTERISTICS:
    ModelHeat exchanger area(m2)Diameter of roller(mm)Rotating speed(r/min)Main power(kw)Power of screw conveyor(kw)Dimension
    GHG505013002~840.758400×1500×2650
    GHG10010015002~85.51.19700×1700×2650
    GHG15015018002~87.51.110500×2100×3000
    GHG20020018002~8111.512400×2100×3000
    GHG30030022002~7151.512000×2100×3000
    GHG40040024002~7221.511500×2800×3900
    GHG50050026001~5302.213100×3000×4200
    GHG60060026001~5372.214800×3000×4200
    GHG70070028001~545315300×3200×4500
    GHG80080028001~555316600×3200×4500
    GHG90090028001~575418000*3200*4500
    GHG1000100030001~4754

    17000×3500×4900

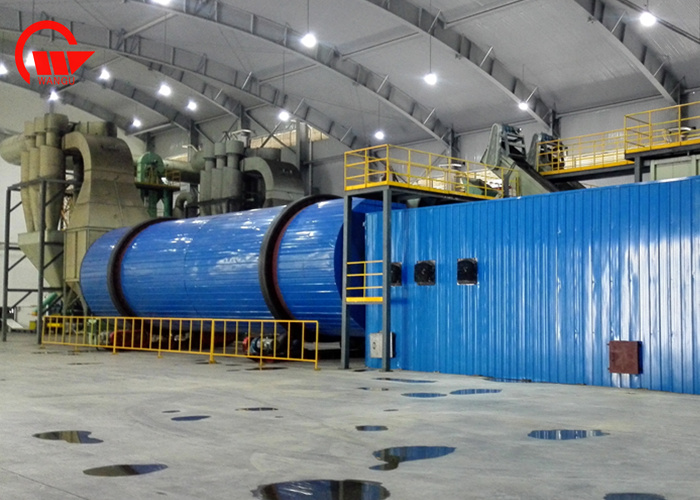

    6. Product Detail Show
    7. Our WorkShop
    8. Packing and Delivery
    9. Customer Visit
    10. Successful Case
    11. Why Choose Us

    1, High drying rate , low cost and affordable.
    2, The manufacturers supply, no middlemen to earn price difference.
    3, Good engineers do technical guidance, the operation without worries.

    12. FAQ

    Q: MOQ?
    A: For trial order,we accept 1 set


    Q: Can you give us competive Price?
    A: Yes , before inquiry us , please kindly send us the detail information of dryer. We will give you our best price.


    Q: Payment terms?
    A: It is 30% in advance by T/T, or L/C at sight.
