Large Capacity Grain Dryer Machine , Fuel Saving Samll Dryer Machine Equipment

1. Introduction:

Small circulating grain dryer is a kind of small grain dryer developed by our company based the continuous grain dryer. The circulating drying process of the machine solves the problem of small grain dryer that can't dry high-moisture raw grains due to the short time of drying. During operation of the machine, as raw grains fail to reach the safe-moisture level after dried for the first time, they will then be circulated into the dryer for the second drying with the circulating delivery system. The moisture level of grain will be tested in real time at the exit of dryer. Until the safe-moisture level of grain is reached, will the discharge valve be started to discharge the grain out of the dryer.

2. Features

a. The circulating process extends the drying time without increasing height of the dryer,ensuring the drying effect on high-moisture raw grains,saving the cost and reducing the floor space.
b. The multi-layer horn box structure inside the dryer makes the exchange between grain layers and hot air more thoroughly and evenly.
c. The patened six-impeller grain discharge mode makes the grain discharge on the whole section of dryer more evenly and thoroughly.
d. The Dryer is set multiple emergency grain discharge ports for easy maintenance and trouble shooting.
e. Coalor straw, wood and other biomass fuels are takenas fuels of hot air furnace.The combustion efficiency is high,significantly reducing the fuel cost.
f. Hand-fired hot air furnace and efficient steel tubular heat exchanger with the integrated structure of hot air furnace and heat exchange are equipped.The hot air furnace is built overall,high in strength and durable.

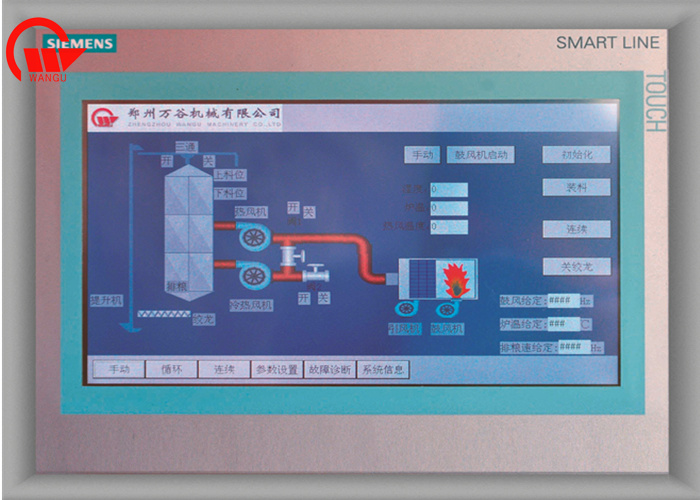

g. On-line tester of grain moisture is equipped.The whole machine adopts one-touch intelligent automatic control and touch-screen operation interface,intuitive indisplay and easy to operate,and has manual control mode and autimatic hot-blast temperature adjustment function

3. Small grain process parameters

 ZHENGZHOU WANGU MACHINERY CO.,LTD

 Our company is founded in 1998 who specializes in the design and manufacture of various drying equipment and has   obtained a number of patents in professional drying field.Main products include grain dryers such as corn dryer, paddy   dryer,rapeseed dryer, and other dryers like tube bundle dryer,fruit residue dryer, rotary dryer, etc..

 The company has 416 employees, among them, there are 63 senior engineers.As the national standard drafter of grain   dryer  in China, our grain dryers are not only in the leading position in the grain drying industry, but also have strong   competitive strength in the world.We have established long-term stable cooperative partnership with many well-known   enterprises, such as Sinograin,COFCO, Wilmar, Heilongjiang Beidahuang Agriculture Co. Ltd., Jiusan Groupetc., with an   annual sale of more than200 sets of equipment.

Our main products are drying line of grians and oil crops(50-2000t/day):available to drycorn,wheat,paddy,soybean and ra pe seed etc,complete drying engineering of apple pomace,citrus pulp and other pomace（1-15tons/day),storehouse cassava dry ing line(100-400ton/day),complete drying engineering of alcohol lees,distilled spirits lees and brewer's spent grain(1-12 tons/day). tower grain dryer of different types,cylinder dryer of different specification for pomace, tube bundle and tube sheet dryer:10-60tons/day,coal-burning hot air furnace,rice hull hot air furnace, straw hot air furnace and marsh gas hot air furnace 0.35-11.2MW(300,000-9600,000kcal/h), grain delivery and cleaning machinery:bucket elevator,belt conveyor,screw conveyor and cleaning sieve.

Pre-sale services:

1. provide professional technical support;

2. send the product catalog and instruction manual;

3. personal call or visit is warmly welcome

Sale of services:

1. we promise honesty and enthusiasm, it’s our pleasure to serve you as you purchasing consultant.

2. We guarantee punctuality, quality and quantities strictly implement the terms of contract

3. We send engineers to install in your factory and train your works until they totally get all skills

After-sale service:

1. One year warranty and life long maintenance

2. 24 hours telephone service online

3. A large stock of components and parts, easily-worn parts.
