Inducing Type Continuous Dryer Machine , Corn / Maize Mechanical Grain Dryer

    Buy cheap Inducing Type Continuous Dryer Machine , Corn / Maize Mechanical Grain Dryer from wholesalers

    Buy cheap Inducing Type Continuous Dryer Machine , Corn / Maize Mechanical Grain Dryer from wholesalers
    • Buy cheap Inducing Type Continuous Dryer Machine , Corn / Maize Mechanical Grain Dryer from wholesalers
    • Buy cheap Inducing Type Continuous Dryer Machine , Corn / Maize Mechanical Grain Dryer from wholesalers
    • Buy cheap Inducing Type Continuous Dryer Machine , Corn / Maize Mechanical Grain Dryer from wholesalers
    • Buy cheap Inducing Type Continuous Dryer Machine , Corn / Maize Mechanical Grain Dryer from wholesalers

    Inducing Type Continuous Dryer Machine , Corn / Maize Mechanical Grain Dryer

    Ask Lasest Price
    Brand Name : WANGU
    Model Number : WGH
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets a year
    Delivery Time : 30-100days upon the order quantity
    • Product Details
    • Company Profile

    Inducing Type Continuous Dryer Machine , Corn / Maize Mechanical Grain Dryer

    WGH 100 100 Ton Per Day Inducing Type Continuous Corn Maize Dryer With 13-15% Fast

    1. Introduction:

    The mixed flow grain dryer consists of drying sections,tempering section and cooling section ertc.Many layersof air ducts are arranged in an alternate way to form a mixed air flow blowing through the grain to remove the moisture.Suitable for drying coarse grains-corn,sorghum;cereal grains-rice,wheat; small grain-rapeseed,millet and oilseeds-soybeans.
    2. Scope of application
    Paddy/Rice
    3. Working principle
    The first important part of paddy dryers is the hot-blast furnace. The following types like: coal burning furnace, fuel burning furnace, natural gas burning furnace, and bio-fuel burning furnace will be available for users. The main function of the furnace is to provide dryer with hot air as the drying medium.
    The most important part of the corn dryer is the drying machine. Its internal components are mainly composed of air intakes and angular boxes.
    In the whole process, raw grain will first fill the drying container, then the hot-blast generated by the furnace will go through the air intakes and enter the inside of the machine. Corn flows slowly from top to bottom by gravity. Meanwhile the hot air flow through the corns layer by layer. In this process, heat is transferred from hot air to grain material to raise the grain temperature to make the moisture inside the material evaporate into the air and become exhausted air, then discharged into the air through the angular boxes. if the working temperature inside the dryer exceeds 150 degrees, or the temperature of corn more than 60 degrees, the quality of corn will be greatly affected. Corn dryer of Wangu Machinery Co., Ltd, select the technology of tempering process, alternating high and low temperature drying multi-level segment, the corn into the cooling section, after cooling, cooling grain to grain storage temperature, then discharged from the grain discharge section greatly to ensure the quality of maize, but also save energy, making breakage rate of corn to 3‰ or less.
    4. Features
    Single outdoor use, weather proof.
    · Constantly, stable, easy operating, small footprint.
    · Suitable to various grains.
    · Heat recycling, lower cost of energy.
    · Grain drying complete, evenness, dry grains can storage directly.
    · Quality after drying is pretty good, no pollution.

    5. PADDY DRYER CHARACTERISTICS:

    ModelWGH100
    Handing capacity
    (T/d)
    100
    Drying rate(%)5~25%
    Heating mediumClean hot blast
    Hot-blast temprature(℃)65~160
    Most bearing temperature
    of grains(℃)
    55
    Unevenness of drying(%)< 2
    Added value of breaking rate(%)< 0.5
    Heat consumption per unit
    (kj/kg)
    5000~7000
    Coal consumption(standard coal)(kg/h)60~230
    CapacityAccording to different area,condition,decreased moisture and needs
    6. Product Detail Show
    7. Our WorkShop
    8. Our Team

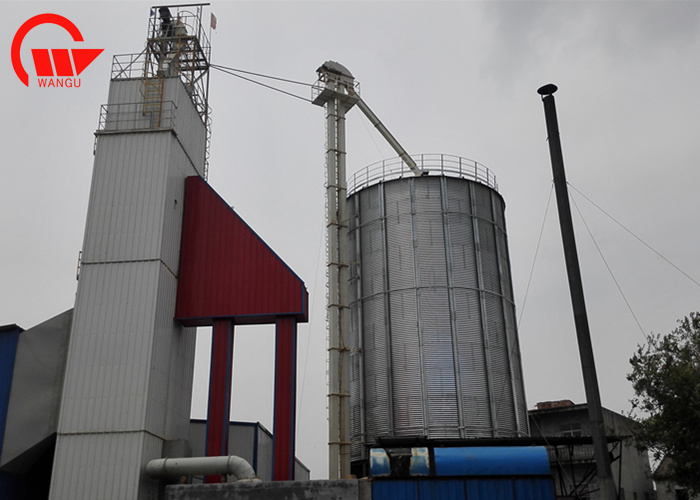

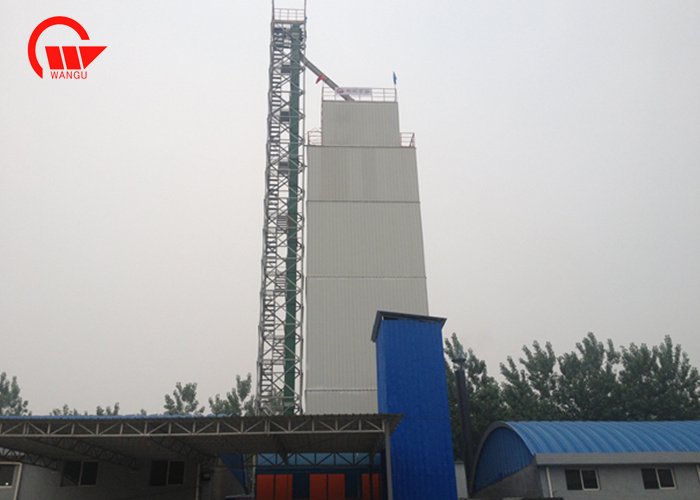

    9. Sucess case
    10. Why Choose Us

    1, High drying rate , low cost and affordable.
    2, The manufacturers supply, no middlemen to earn price difference.
    3, Good engineers do technical guidance, the operation without worries.


    11. FAQ

    Q: MOQ?
    A: For trial order,we accept 1 set


    Q: Can you give us competive Price?
    A: Yes , before inquiry us , please kindly send us the detail information of dryer. We will give you our best price.


    Q: Payment terms?
    A: It is 30% in advance by T/T, or L/C at sight.
