    20t - 1000t Steel Grain Silo 11m Diameter With Galvanized Sheet 95㎡ Base Area

    Ask Lasest Price
    Brand Name : WANGU
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets a year
    Delivery Time : 30-100days upon the order quantity
    • Product Details
    • Company Profile

    20t - 1000t Steel Grain Silo 11m Diameter With Galvanized Sheet 95㎡ Base Area

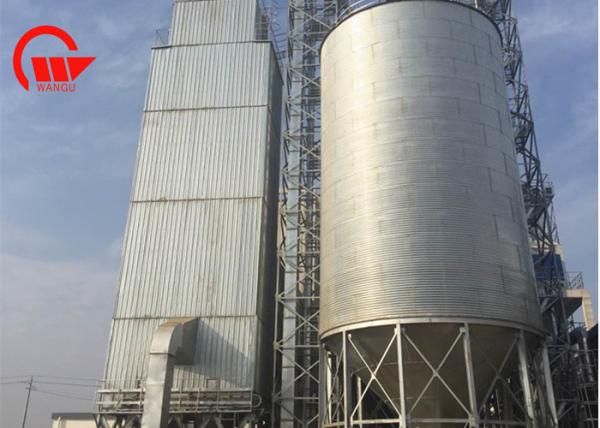

    11 m Diameter Steel Grain Silo which is used for storage Grians with Galvanized sheet
    1. Introduction:

    Steel silos are specially designed and developed by our company. The design is based upon absorption and digestion of domestic and oversea advanced technologies. Steel silos are widely used for bulk storage of grain, food products, starch, feed, and so on. Wangu supplies all-steel hopper bottom silo and flat bottom silo in a variety of sizes, features and capacities. The diameter of hopper bottom silos range from 3.6m to 32m with capacities from 20t to 1000t, and the capacity of flat bottom silos range from 800t to 10000t.

    2. CHARACTERISTICS:
    Cone base modelfull Cone base silo
    Roof height25°
    specification(m)φ11
    Diameter(m)11
    Roof height(m)2.32
    Base area(㎡)95
    RingsEaves hight(m)
    44.48
    55.6
    66.72
    77.84
    88.96
    910.081039
    1011.21146
    1112.321252

    12

    13.441358
    1314.561
    1415.681314
    1516.81403
    1617.921493
    1719.041582
    1820.161671

    3. Silo Roof

    Include grain storage bins silo roof handrail, roof vent, manhole and door, safety handrail is set on the roof as our standard design,corrugatd steel silo roof is made of galvanized sheet.
    Silo Body
    1 ) Made of high quality hot-dip galvanizing steel sheet corrugated by special equipments
    2) Grain storage bins body sheets are connected by high yeild bolts, the thickness of corrugated steel silo sheet is designed according to the constant strength theory.
    3) There are stiffeners fixed on the body ,which is used to bear the vertical friction force and support the storage silo body;The bolts and nuts are fixed with spherical waterproof washers.
    4) There are Aviation special waterproof rubber strip between the storage silo sheets. Galvanized grain silo is equipped with round door, inside and outside ladder, ladder protecting wire net and ladder platform.
    Silo bottom

    Grain storage bins steel cone base is composed of upright columns,annular girder,cone plates,tie pieces etc.the upright columns are made of national standard I-shaped steel and I-shaped steel is cone of the most widely used steel types in steel structure design and manufacturing.It has good structure stability and reliability.

    4. The grain silos Body

    Include the wall plate, column, manhole, roof ladders and so on.

    (1) The wall sheet of grain silos

    Our steel is hot galvanized, which makes it durable and weather resistant. Our advanced bolts with spherical washer and the resisting-worn rubber are used to ensure the tightness and using period.

    (2) Stiffeners of storage grain silos

    The column, made by the Z-bar, is used to reinforce the silo body. It is connected by junction panels.

    5. Product Detail Show

    6. Silo Features
    1. Steel sheet use high quality galvanized sheet,all parts are standard parts, Strictly follow the relevant national standards of silo design, manufacture and installation.
    2. Easy installation, low investment
    3. Silo height, diameter can be in a wide range of choice, the two position space of two silos can be less than 80cm, less land occupation, well-adapted, the maximum can up to 15000tons/silo,
    4. In normal use, if the grain in the warehouse temperature rises the critical point due to the higher water content , the temperature and monitoring system will sound and light alarm in time and
    tell you there is danger in some parts of grain and should be ventilation and cooling
    5. The silo diameter from 2.7m-32m . The assembly steel silo widely used in grain and oil, Chemical, brewing, medicine, food , cement , coal and other industries.
    7. Our Workshop
    8. Our Worker
    9. Why Choose Us

    1, High drying rate , low cost and affordable.
    2, The manufacturers supply, no middlemen to earn price difference.
    3, Good engineers do technical guidance, the operation without worries.

    10. FAQ

    Q: MOQ?
    A: For trial order,we accept 1 set

    Q: Can you give us competive Price?
    A: Yes , before inquiry us , please kindly send us the detail information of dryer. We will give you our best price.

    Q: Payment terms?
    A: It is 30% in advance by T/T, or L/C at sight.
