Brand Name : | WANGU |
Model Number : | TCQY |
Certification : | ISO |
Price : | Negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 200 sets a year |
Delivery Time : | 30-100days upon the order quantity |
TCQY 100/420 wheat paddy soybeans oats maize cleaning machine seed
grain pre cleaning rotary screen grain cleaner
1. Introduction:
TCQY series double drum cleaner can be widely used for pre-cleaning
of bigger and smaller impurities for raw grain, such as wheat,
paddy, corn etc..
Its basic principle is due to the different sizes of grain and
impurity, to remove the impurities from the raw grain by rotating
screen cylinder. The inner sieve and outer sieve of the dual screen
cylinder have different bore diameters, with the inner sieve hole
is larger than the net grain and the outer one is smaller. In the
process of cleaning, raw material is sent into the inner cylinder
from the inlet, the large impurities are removed by rotating screen
cylinder, then discharged from the outlet, while the pre-processed
material passes through the inner sieve hole being sent into the
outer cylinder. In the rotating process the smaller impurities are
swung out via the sieve hole, then flowing into the bucket and
being discharged from the little outlet, at last the treated clean
grain is discharged from the discharging vent.
The machine has characteristics of simple driving mechanism, stable
running, low noise, low power consumption, and easy maintenance.
2. CHARACTERISTICS:
Item | Specification and Parameters | |||||
TCQY 100/420 | ||||||
Inner screen cylinder (mm) | Diameter | Φ1000 | ||||
Cylinder length | 4200 | |||||
Outer screen cylinder (mm) | Diameter | Φ1550 | ||||
Cylinder length | 3650 | |||||
Screen cylinder speed(r/min) | 8.5 | |||||
Engine power(KW) | 4 | |||||
Output(t/h) | Paddy | 80~100 | ||||
Wheat | 200 | |||||
Corn | 200 | |||||
Equipment weight(kg) | 3200 |

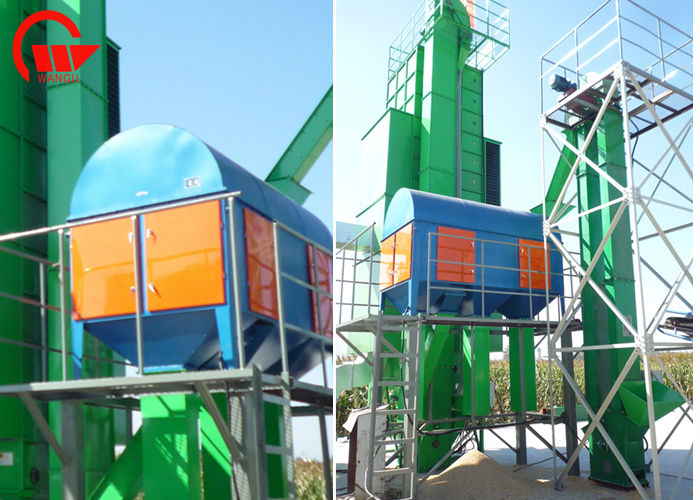

3. Product Detail Show
5. Why Choose Us
1, High drying rate , low cost and affordable.
2, The manufacturers supply, no middlemen to earn price difference.
3, Good engineers do technical guidance, the operation without
worries.
![]() |
