    Galvanized Steel Grain Silo For Quick And Easy Grain Storage Solution

    Steel Grain Silo which is used for storage Grians with Galvanized sheet


    Introduction:

    1, Structure type
    Prefabricated steel plate silo (assembly silo)
    The wall plate is corrugated, and galvanized sheet is generally used with a thickness of 0.8-4.2mm. The thickness of the silo wall can reach 8.4mm. It is formed by punching corrugated sheets through mechanical rollers and molds, and then assembling them through connections using an electric torque wrench.
    2, Product Features
    In terms of economy
    Low cost: generally only 35% -50% of the steel and cement silo, with a service life of over 30 years, which can save about 50% of building materials and save costs for enterprises.
    Light weight and low consumables: reduces basic costs.
    Construction and use aspects
    Short construction period: It usually takes about 3 months to complete, and all components of the assembly silo are connected by bolts for quick installation. The overall assembly of the steel plate silo is simple and fast.
    Easy to achieve automation: With supporting equipment, it can be configured according to usage requirements for silo entry, exit, ventilation, drying, temperature measurement, filling, and other equipment to achieve safe grain storage and other purposes.
    Simple demolition and convenient maintenance: Partial plate damage can be replaced. The prefabricated steel plate silo is directly connected by bolts, and can be disassembled and moved away by removing the bolts.
    In terms of storage performance
    High strength and high safety: Reliable in terms of strength, performance, and safety.
    Suitable for storing grain and feed, with a large storage capacity of 500-12000 tons per warehouse.
    Energy saving and environmental protection: Dust collection systems can be installed during the inbound and outbound processes, which will not cause pollution to the surrounding environment.
    Good storage effect: Steel plate storage is a good method for storing grain, which can solve technical barriers such as cement compaction and physical index decline caused by temperature differences and humid gases in the walls of the steel plate silo. It can also solve the problems of water ingress and leakage of cement at the bottom of the steel plate warehouse.
    3, Application scope
    Our company's steel plate warehouse is mainly used for storing materials such as grain and feed.

    4. CHARACTERISTICS:
    Cone base modelfull Cone base silo
    Roof height25°
    specification(m)φ11
    Diameter(m)11
    Roof height(m)2.32
    Base area(㎡)95
    RingsEaves hight(m)
    44.48
    55.6
    66.72
    77.84
    88.96
    910.081039
    1011.21146
    1112.321252

    12

    13.441358
    1314.561
    1415.681314
    1516.81403
    1617.921493
    1719.041582
    1820.161671

    Silo Roof

    Include grain storage bins silo roof handrail, roof vent, manhole and door, safety handrail is set on the roof as our standard design,corrugatd steel silo roof is made of galvanized sheet.
    Silo Body
    1 ) Made of high quality hot-dip galvanizing steel sheet corrugated by special equipments
    2) Grain storage bins body sheets are connected by high yeild bolts, the thickness of corrugated steel silo sheet is designed according to the constant strength theory.
    3) There are stiffeners fixed on the body ,which is used to bear the vertical friction force and support the storage silo body;The bolts and nuts are fixed with spherical waterproof washers.
    4) There are Aviation special waterproof rubber strip between the storage silo sheets. Galvanized grain silo is equipped with round door, inside and outside ladder, ladder protecting wire net and ladder platform.

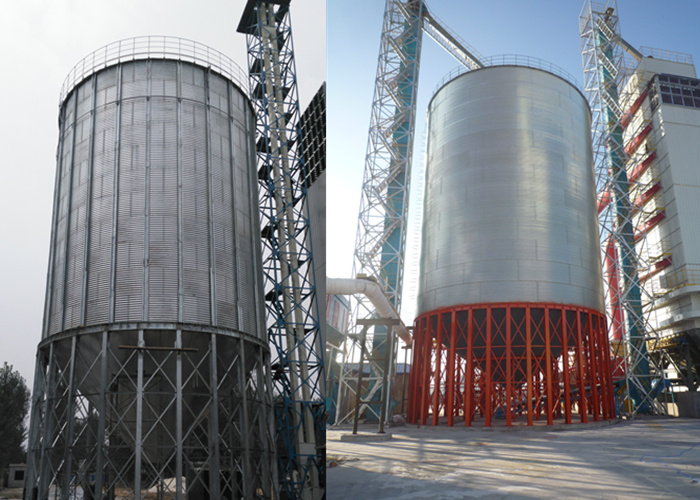

    Silo bottom

    Grain storage bins steel cone base is composed of upright columns,annular girder,cone plates,tie pieces etc.the upright columns are made of national standard I-shaped steel and I-shaped steel is cone of the most widely used steel types in steel structure design and manufacturing.It has good structure stability and reliability.

    The grain silos Body

    Include the wall plate, column, manhole, roof ladders and so on.

    (1) The wall sheet of grain silos

    Our steel is hot galvanized, which makes it durable and weather resistant. Our advanced bolts with spherical washer and the resisting-worn rubber are used to ensure the tightness and using period.

    (2) Stiffeners of storage grain silos

    The column, made by the Z-bar, is used to reinforce the silo body. It is connected by junction panels.

    5. Product Detail Show

    6. Our Workshop
    7. Our Worker
